    SS310 Mesh Pad Mist Eliminator Oil Mist Extractor In Separator Drain Hole Design

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : YQ-116
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    SS310 Mesh Pad Mist Eliminator Oil Mist Extractor In Separator Drain Hole Design

    Mesh Pad Mist Eliminator Oil Mist Extraction SS310 Drain Hole Design

    Mesh Pad Mist Eliminator Oil Mist Extraction SS310 Drain Hole Design

    Description
    Product Name:Air Cleaning Mist EliminatorSize:500mm*500mm
    Application:Ventilation SystemMaterial:SS310
    Frame:Metal PlateSections:No Sections; Whole
    High Light:

    mesh pad mist eliminator

    ,

    filter mesh pad

    Mesh Pad Mist Eliminator Oil Mist Extraction SS310 Drain Hole Design

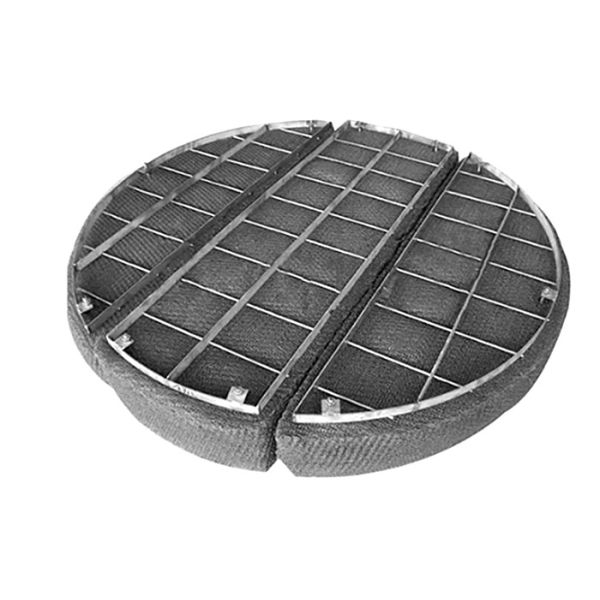

    The mesh pad demister is mainly constructed by wire mesh pad and grids. The pad consists multiple layers of fabric-knitted from metals and synthetic fiber monofilament chosen to suit the particular duty requirements. After knitting each layer is crimped and then converted into desired size or shape or pads. The pads are not entirely rigid and generally supported by open grid structure. The grids usually adopt stainless steel 25mm*3mm flat bars and Φ6mm round rods. Sometimes like this case bending metal plate frame are also used.


    Demister mist eliminator Specifications in this case


    ItemValueUnit
    MaterialSS310/
    Shape & Size500*500mm
    Mesh Thickness100mm
    Demsiter Height100mm
    Wire Diameter0.28mm
    Mesh Density145kg/m3
    Void Fraction0.982/
    Specific Area260m2/m3
    Gridsscreen mesh +
    bending plate
    mm

    How does a demister pad work?


    (1)A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.

    (2)The inertia of the droplets causes them to contact the wire surfaces and coalesce.

    (3)The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.
